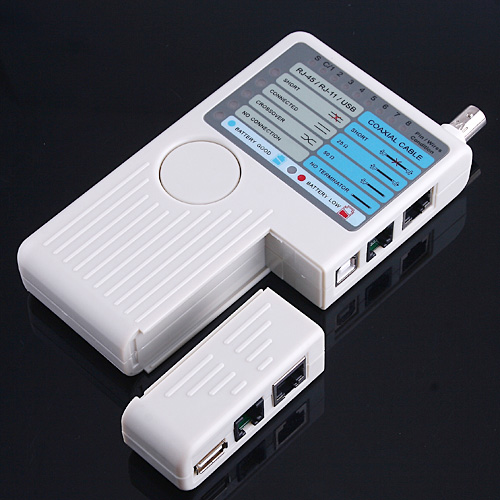

Network Cable Tester

upc:5.1975216381e+011

  • 5.1975216381e+011

Choose your country:

  • United States
  • Canada
  • United Kingdom
  • France
  • Germany
  • Spain
  • Japan
  • Italy
  • Mexico
  • Overview
  • FAQ

UPC:519752811272

Features:
Test 4 kinds of cables: RJ-45, RJ-11, USB and BNC.
Test the installed wiring or patch cable.
Test shielded (STP) or unshielded (UTP) LAN cable.
Test shielded USB cable.
Can be tested from 2 remote points.
Beeper provides an acoustic message of the test results.
Remote device saves in main device.
BNC Terminator 25/50 Ohm Indications.
Straight or crossover indications.
LEDs indicate the connections and faults of the wire.
RJ-11 / RJ-45 are equipped with 50u gilding.
The test distance is 300 meters (RJ-45 / RJ-11 / BNC).
Power supply: 1 * 9V alkaline battery. (Not included in the delivery)
Low battery charge indicator.
Easy one-button test.
Fast speed of the test.
With a soft leather case for carrying.
High quality.

Technical specifications:
Tested Cable:
UTP and STP LAN cables, terminated in RJ-45 connectors (EIA / TIA 568);
RJ-11 cable with connectors, 2 to 6 installed conductors;
USB cable, one side of which is Type A flat plug, which is different Type B square plug;
BNC cable with connectors
Fault indication: No connections, short circuits, interruptions and crossover
Battery indicator: Low battery charge LED indicator
Power: 1 x 9 V 6F22 DC Alkaline battery (not included)
Color gray
Dimensions: about 162 x 85 x 25mm (6.38 x 3.35 x 0.98 inch)
Product weight: 164g (without battery)
Packing dimensions: 225 x 110 x 43 mm
Package weight: 215g

Scope of delivery:
1 x 4-in-1 network cable tester
1 x Far End Remote Control Jack (USB RJ45 RJ11) (On the main unit)
1 x BNC remote control socket
1 x case
1 x English operating instructions
