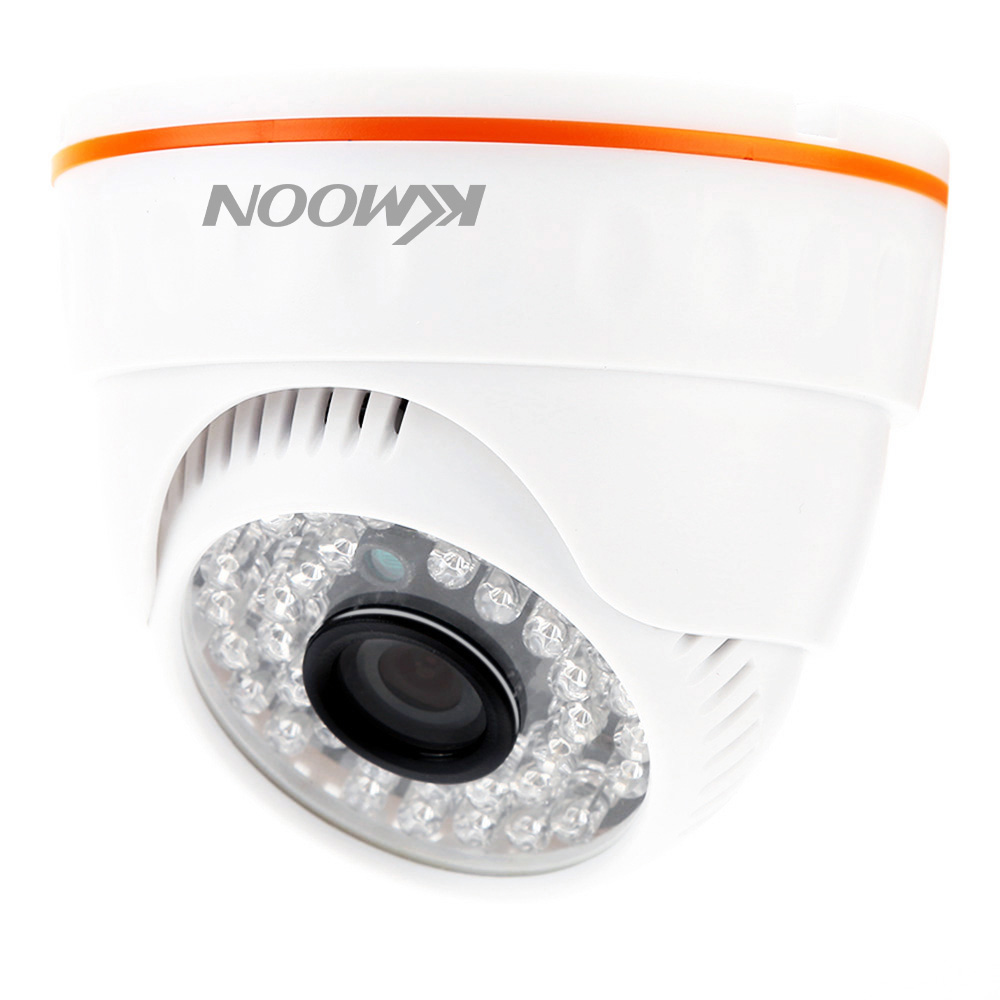

CCTV 720P IR LED Indoor ONVIF Security IP Dome Camera

sensor_size:1/4"

  • 1/4"
  • Overview
  • FAQ
This IP camera is one cost effective H.264 1.0 Mega Pixel IP Indoor Camera, which adopts Main Profile Video compression technology. Meanwhile it uses 1/4"inch progessive CMOS sensor, plus with 1.0 megapixel lens, ensures its high quality image.

Features:
1/4 OV9712 720P IP camera.
MTV3.6mm Lens.
36 pcs IR LEDs, up to 25m.
IR-CUT Automatic switching function.
Easy to setup and use, plug and play.
Infrared synchronization, night vision better.
Good color, screen real shot scene, the image is clear, the color edge image.

Specifications:
Model: TP-Hi100iRD
Sensor: 1/4 OV9712
Infrared Lamp: 36PCS * Φ5LED
Infrared Distance: 25M
Video: H.264 main Profile, Support Dual Stream, AVI Format
Resolution: Main Stream: 1280 * 720 ; Sub Stream: 704 * 576
Stream: 1MP: 25FPS
Audio: N/A
Audio Compression: N/A
Network: 1 * RJ45, 10/, Support RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP
WDR: N/A
Photoresistor: 1 * Photoresistor Port, Support Photoresistor Input Signal Actived with Picture, IR-CUT and IR light
CVBS Output: N/A
Storage Card: N/A
Basic Function: Support WEB remote config, OSD, motion detect, record, snapshot(MJPEG), CMS, mobile
ONVIF: ONVIF 2.4
Mobile: Support for iPhone, for BlackBerry,  Symbian,  Android, Windows Mobile
Browser: Google chrome / Firefox / Safari / Exploer
Power: DC12V
Texture of Material: ABS
Item Size: Approx. 9.1 * 9.1 * 8.6 cm / 3.6 * 3.6 * 3.4in (L * W * H)
Item Weight: Approx. 179g / 6.3oz
Package Size: Approx. 11.3 * 11.1 * 10.4cm / 4.5 * 4.3 * 4.1in (L * W * H)
Total Weight: Approx. 256g / 9.1oz
Quantity: 1pcs
Warranty: 1 Year

Package list:
1 * Camera
3 * Mounting screws
1 * Random Delivery for CD software or TF card (including operating software)
1 * Manual
