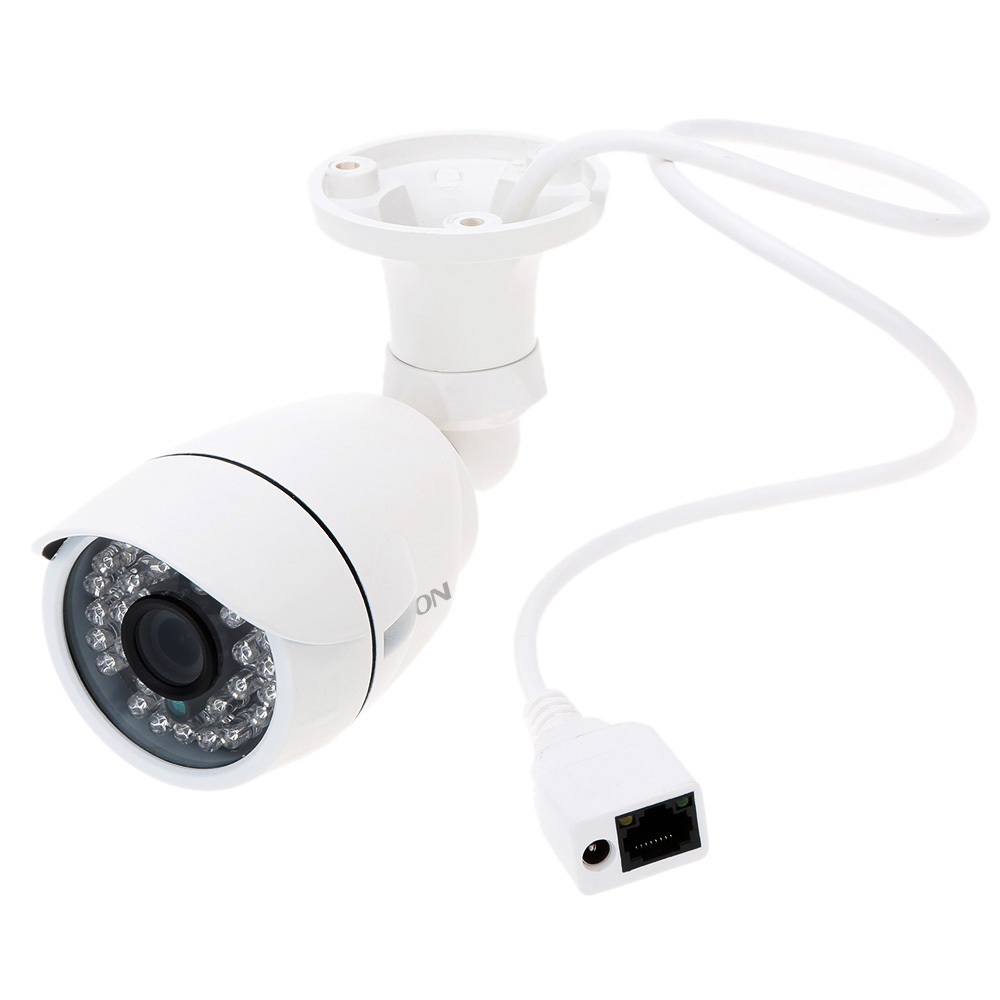

720P Weatherproof IP Camera Outdoor Night Vision ONVIF H.264

  • Overview
  • FAQ
This IP camera is one cost effective H.264 1.0 Mega Pixel IP Indoor Camera, which adopts Main Profile Video compression technology. Meanwhile it uses 1/4"inch progessive CMOS sensor, plus with 1.0 megapixel lens, ensures its high quality image.

Features:
1/4 OV9712 720P IP camera.
MTV3.6mm1MP Lens.
30 pcs IR LEDs, up to 30m.
IR-CUT Automatic switching function.
IP 66, Waterproof and Vandal Proof.
plug and play installation.


Specifications:
Model: TP-Hi100BY
Sensor: 1/4 OV9712
Infrared lamp: 30PCS * Φ5LED
Infrared distance: 30M
Video: H.264 main Profile, Support Dual Stream, AVI Format
Resolution: Main Stream: 1280 * 720; Sub Stream: 704 * 576;
Stream: 1MP : 25FPS
Audio: N/A
Audio Compression: N/A
Network: 1 * RJ45, 10/, Support RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP
WDR: N/A
Photoresistor: 1 * Photoresistor Port, Support Photoresistor Input Signal Actived with Picture, IR-CUT and IR light
CVBS Output: N/A
Storage Card: N/A
Basic Function: Support WEB remote config, OSD, motion detect, record, snapshot(MJPEG), CMS, mobile
ONVIF: ONVIF 2.4
Mobile: Support for iPhone, for BlackBerry, Symbian, Android, Windows Mobile
Browser: Google chrome / Firefox / Safari / Exploer
POWER/VIDEO: DC12V-2A/75Ω
Waterproof Grade: IP 66
Texture of Material: Aluminium Alloy
Item Length: Approx. 16.7 * 7 * 7 cm / 6.6 * 2.75 * 2.75in (L * W * H)
Item Weight: Approx. 260g / 9.2oz
Package Size: Approx. 16.3 * 10.2 * 9.2cm / 6.4 * 4.0 * 3.61in (L * W * H)
Total Weight: Approx. 354g / 12.5oz
Quantity: 1pcs
Warranty: 1 Year

Package list :
1 * Camera
1 * Random Delivery for CD software or TF card (including operating software)
3 * Mounting screws
1 * manual
