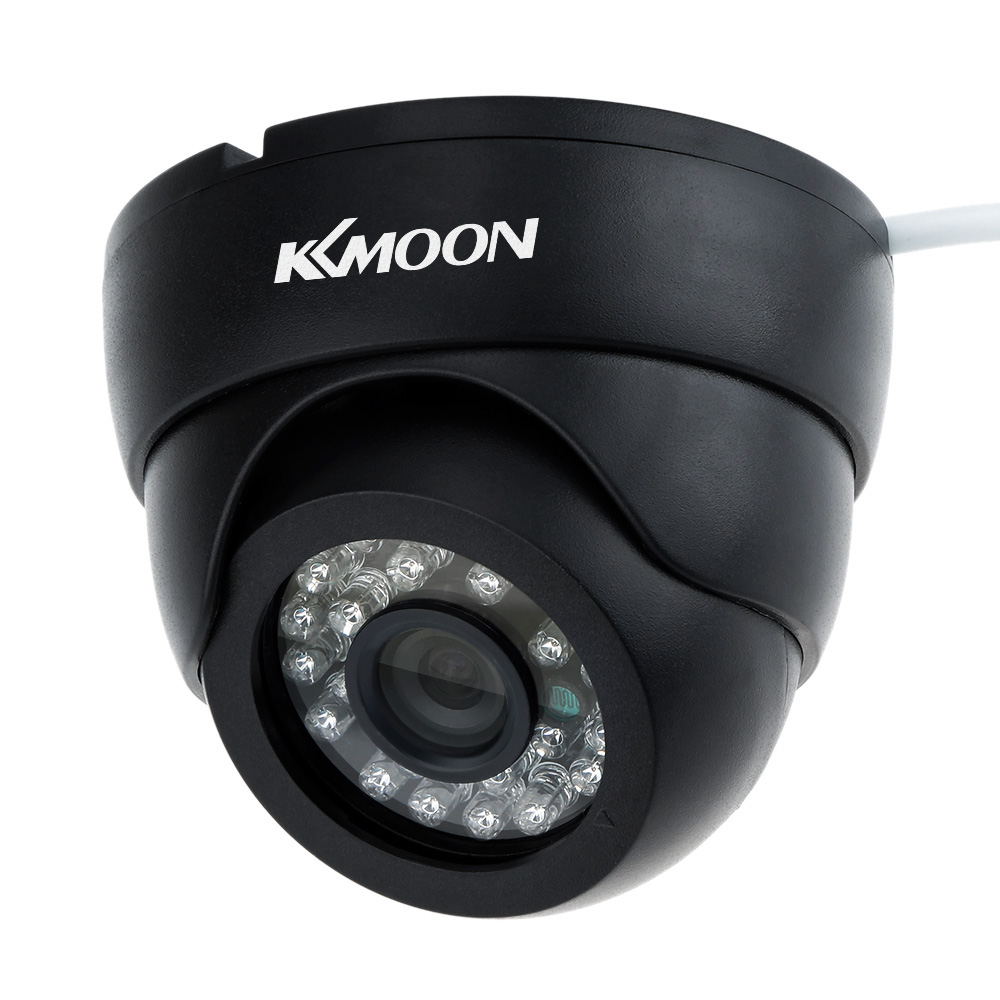

CCTV 800TVL Indoor 24 LEDS Wide Angle IR Color Security Surveillance Dome Camera
- Overview
- FAQ
- Reviews
Features:
1/4" CMOS.
Horizontal Resolution 800TVL.
MTV3.6mm Lens.
IR-CUT Automatic switching function.
24 pcs IR LEDs, up to 25m.
Plug and play installation.
Specifications:
Model: TP-R703iRB
Image Sensor: 1/4" CMOS
Signal System: PAL
Horizontal Resolution: 800TVL
Infrared Lamp: 24PCS * Φ5LED
Infrared distance: 25M
Min.ILLumination: Day(0.1Lux),Night(0.02Lux Open the lamp)
S/N Ratio: ≥52dB
Video Output: 1/50~1/100,000S Auto
Video Output: 1.0vp-p 75Ω BNC Connector
AGC: Auto
BLC: Auto
White Balance: Auto/Manual
Color Adjustment: 90mA~100mA/DC12V (without IR LED)
Synchronizing System: Internal Synchronization
Gamma Correction: 0.45
Working Temperature: -20°C to +50°C
Power Consumption: <3W
Texture of material: ABS
Color: Black
Item Size: Approx. 9.3 *9.3 * 7.6cm / 3.7 * 3.7 * 3in (L * W * H)
Item Weight: Approx. 168g / 5.9oz
Package Size: Approx. 11.4 * 11.1 * 10.4cm / 4.5 * 4.3 * 4.1in (L * W * H)
Total Weight: Approx. 234g / 8.3oz
Quantity: 1pcs
Warranty: 1 Year
Package list:
1 * Camera
3 * Mounting Screws
1 * Instruction manual
