Steelmate DIY TP-90 TPMS for Motorcycle Tire Pressure Monitoring System with Waterproof External Sensor Wireless LCD Display

language:english

  • english

Choose your country:

  • United States
  • Canada
  • United Kingdom
  • Japan
Buy at Amazon
  • Overview
  • FAQ
  • -->
This TPMS is easy to install and convenient to use, a perfect safety measurement device for your motorcycle.

Features:
1.Special for motorcycle with 2 sensors
2.Pressure range: 0-4.5Bar / 0-65PSI
3.Waterproof and dustproof display
4.Two ways for display mounting (clip on handle or stick on dash)
5.Replaceable sensor battery with CR1632
6.The weight of sensor is only 9.6g, there is no tire balance needed after installation
7.Flexible sensor installation/relocation (without hassles or any breakdown of tires)
8.Sensor preset in factory, no pairing is needed
9.Green tire indicator lights up every 2 seconds to show the real-time tire pressure of corresponding tire
10.Self-testing for each power on
11.End users can set the threshold of tire pressure & temperature
12.Convertible pressure (PSI / Bar)
13.Visual and audible warning
14.Tire indicator turns red with corresponding tire data once abnormal tire data detected
15.The display brightness will be reduced 25s after each power-on/pressing SET power button for power saving

Specifications:
Sensor
Operating Frequency: 433.92MHz ± 0.05MHz
Operating Voltage: 1.8~3.3V
Operating current: ≤18mA
Static current: ≤1uA
Operating Temp.: -20℃~+60℃ / -4℉ ~ + 140℉
Battery Model: CR1632
Battery Voltage: 3V
Battery Life: ≥2years

Display
Operating Frequency: 433.92MHz ± 0.05MHz
Operating Current: ≤40mA
Static Current: ≤15mA
Operating Voltage: 9~16V
Operating Temp: -40℃ ~ +70℃ / -40℉ ~ +158℉

General:
Package Size: 15 * 12 * 6cm / 5.9 * 4.7 * 2.4in
Package Weight: 291g / 10.2oz

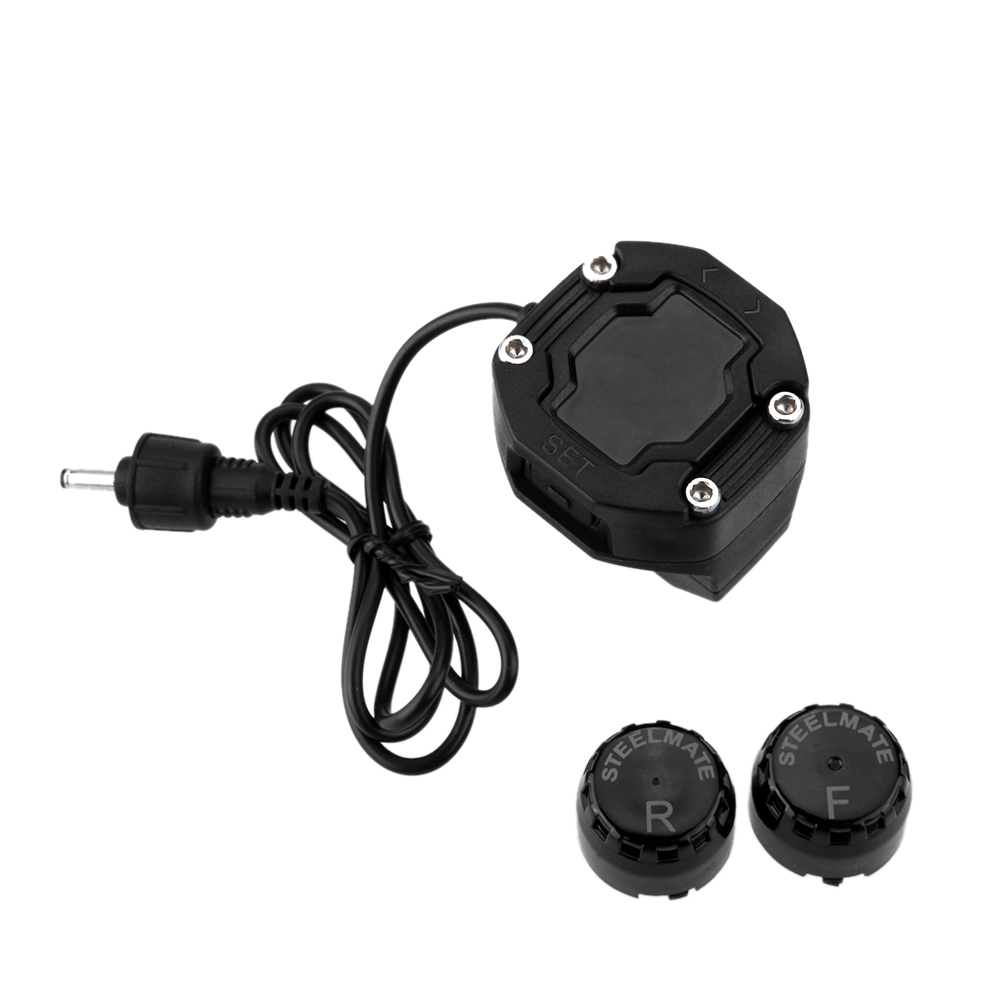

Package List:
1 * Display
2 * Sensor
1 * Set Installation Accessory
1 * English User Manual
