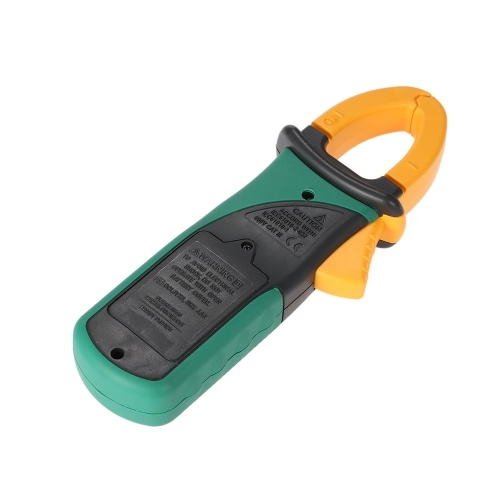

KKmoon Mastech MS2108A Digital Clamp Multimeter Frequency Max./Min.Value Measurement Holding Lighting Bulb Carrying Bag

Choose your country:

Buy at Amazon
  • Overview
  • FAQ
  • Reviews
UPC: 768390126402

Perform measurements of AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode and continuity test.
Measuring frequency, AC/DC current and duty cycle by clamp.

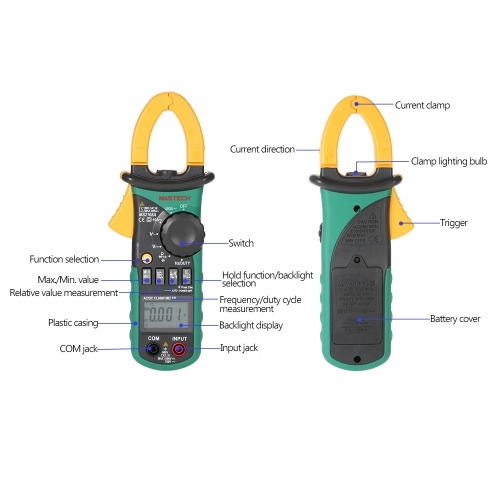

LCD with backlight & bar graph and clamp lighting bulb.
Relative value measurement and auto range function.
Provided with one excellent cloth bag for conveniently-carrying.
Data holding, to hold the readings while taking measurement.
Maximum and minimum value measuring and holding.
Automatic indication of functions and unit symbols.
Auto power off and low battery indication.
Full overload protection and dual insulation protection.
Over-molding rubber case, shake-proof, skid-proof and good touch-feeling.

General specifications:
Max. V between terminals & earth: 1000V DC or 750V rms AC
Operating temperature: 0 to 40 Celsius Degree (32 Fahrenheit to 104 Fahrenheit)
Storage temperature: -10 to 50 Celsius Degree (10 Fahrenheit to 122 Fahrenheit)
Operating altitude: Max. 2000 meters (7000 ft.)
Max. diameter for conductor: Diameter 26mm
Max. displayed value: 4000 digits
Auto polarity indication: "-" for negative polarity.
Over-range indication: "0L" or "-0L"
Converter rate: 3 times/sec; Bar graph: 30 times/sec
Auto power off time: 15 minute
Power supply: 3 * 1.5V AAA battery (not included)
Multimeter size: 20.8 * 7.8 * 3.5cm / 8.2 * 3.1 * 1.4in
Multimeter weight: 238g / 8.4oz
Package size: 23 * 10.5 * 6cm / 9.1 * 4.1 * 2.4in
Package weight: 469g / 16.5oz
Measurement specifications (accuracy):
AC Current 40A/400A ±2.0%
DC Current 40A/400A ±2.0%
DC Voltage 400mV ±1.0%
4V/40V/400V ±0.7%
1000V ±0.8%
AC Voltage 4V/40V/400V ±0.8%
750V ±1.0%
Frequency By A range (current clamp) 10Hz/1kHz/>1kHz ±1.5%
By ACV range 10Hz/1kHz/10kHz ±1.5%
>10kHz Take it only as reference
By Hz/DUTY range 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±0.5%
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±0.8%
40MΩ ±1.2%
Capacitance 40nF/400nF/4uF/40uF/400uF/4000uF ±4.0%

Package including:
1 * Digital Multimeter
2 * Test Lead
1 * Instruction Manual
