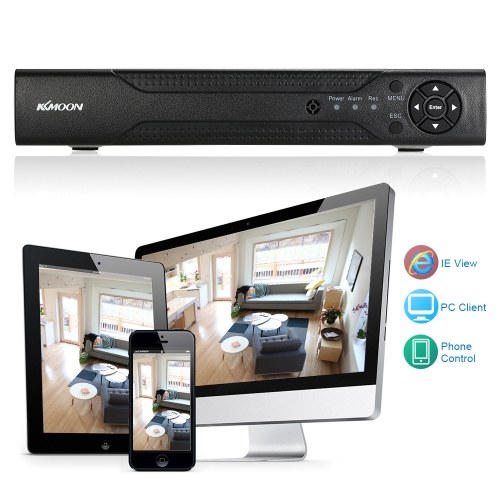

KKmoon 16CH 1080P Hybrid NVR AHD TVI CVI DVR 5-in-1 Digital Video Recorder P2P Cloud Network Onvif Digital Video Recorder + 2TB Seagate Hard Disk support Plug and Play Phone APP Free CMS Browser View Motion Detection PTZ for CCTV Security Camera Surveillance System

Choose your country:

Buy at Amazon
  • Overview
  • FAQ
  • Reviews
Operation Video for DVR Security System:
1. Connection and operation of DVR security kit: https://youtu.be/lBd9vn_ZZzM

2. Access on IE browser, PC client and smart phone: https://youtu.be/qYl6trNVrjk


Features:
*Consist of 16CH 1080P Hybrid NVR AHD TVI CVI DVR 5-in-1 Digital Video Recorder+ 2TB hard disk for CCTV security system.
*NVR CVI TVI HVR AHD 5-in-1 function, support both AHD camera and analog camera input.(Support up to 1080P CCTV analog camera and 5MP IP camera input).
*Onvif standard, also can be connected to Onvif IP camera for video record.
*Multiple ways to access on the PC, phone/pad and browser via softwares on CD.
*Support motion detection record and push notification.
*Plug and play use, no need any complex installation.


Specifications:
Processor: Hi3531 chip
Operating System: Embedded Linux System
Menu Display: 1/4/8/9/16 Screen
Signal System: PAL/NTSC
Frame Rate: 1-25fps (PAL), 1-30fps (NTSC)
Recording resolution: Main-stream: 1080N/960H/D1
Compression Format: H.264 high profile
HDD Capacity: 2TB, 3.5in SATA3.0 port
Analog Input: 8*1080N,16*1080N,16*960H
Network Input: 8*1080P, 8*960P, 4*5MP,4*3MP
Hybrid Input: 8*1080N (analog) + 8*960P (IPC)
Max Sync Playback: 16channel 1080N
Record Mode: Manual/Scheduled/Motion Detection
Pre Record: 0-30s; Post Record: 0-300s
Region Cover: Support 4 areas block
Digital Zoom: support; Dual stream: support
Video Input: 16ch BNC; Video Output: 1ch HD/VGA
Audio Input: 2ch RCA; Audio Output: 1ch RCA
Network Protocol: Onvif, HTTP, DHCP, PPPOE, DDNS, SMTP, FTP, RTSP
OSD Language: English, German, French, Spanish, Italian, Japanese, Portuguese, Russian, etc
DVR Resolution: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
Phone/Pad APP: support for Android/iOS OS
APP Name: XMEye (can download on APP store or for Google Play)
PC Software: support windows xp, win7, win8, win10, etc
Browser: support IE, Safari, Chrome, Firefox, etc
DVR Size: 26.1*22.7*4.5cm / 10.28*8.94*1.77in
DVR Weight: 1556g / 3.43Lb (with HDD)
Package Size: 34.5*27.5*7.5cm / 13.6*10.83*2.95in
Package Weight: 2115g / 4.66lb


Package list:
1 * 16CH DVR (2TB HDD)
1 * EU Power Adapter
1 * USB Mouse
1 * Remote Control (2*AAA battery excluded)
1 * Bag of Screws for HDD Installation
1 * CD (contain softwares and detailed E-manual)
1 * User Manual (English/German)
