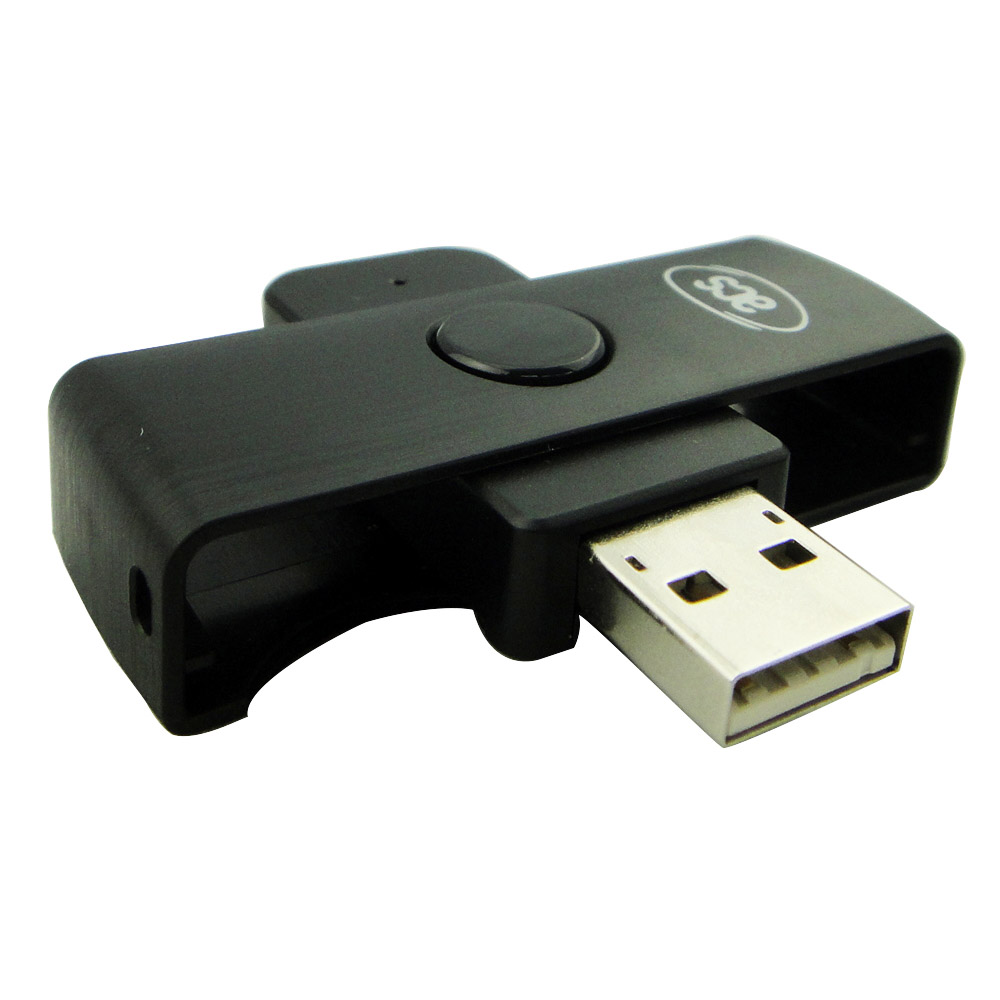

Portable Smart Card USB ACR38U-N1 CAC Common Access Card Reader Writer ID SCM Smart Fold

Choose your country:

  • United States
  • Germany
  • Spain
  • Italy
  • Mexico
  • Overview
  • FAQ
Features:
Supports ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ) cards.
Performs read and write operations on all microprocessor cards with T=0, T=1 protocols.
Supports most of the popular memory card types in the market.
Cards following the I2C bus protocol (free memory cards) such as:
 Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
 SGS-Thomson: ST14C02C, ST14C04C
 Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
Cards with intelligent 256 bytes EEPROM and write protect function: SLE4432, SLE4442, SLE5532, SLE5542.
Cards with intelligent 1K bytes EEPROM and write-protect function: SLE4418, SLE4428, SLE5518, SLE5528.
Cards with '104' type of EEPROM (non-reloadable token counter cards): SLE4406, SLE4436, SLE5536, SLE6636.
Cards with secure memory IC with password and authentication: AT88SC153, AT88SC1608.
Cards with Intelligent 416-Bit EEPROM with internal PIN check: SLE4404.
Cards with security logic with application zone: AT88SC101, AT88SC102, AT88SC1003.
Support PPS (Protocol and Parameters Selection).
Short circuit protection.

Specifications:
Interface: USB 2.0 full speed
Supply Voltage: Regulated 5V DC
Supply Current: Max. 50mA
Operating Temperature: 0-50⁰ C
CLK Frequency: 4 MHz
MTBF: 50,000 hrs
Smart Card Interface Support: ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ), T=0 and T=1
Compliance/Certifications: EN 60950/IEC 60950, ISO-7816, EMV 2000 Level 1, PC/SC, CCID, CE, FCC, RoHS, USB Full Speed Microsoft WHQL: Windows 2000, XP, Vista, 7
Operating System Support: Win98, Win ME, Win NT 4.0, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7 ,Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64 ,Mac Linux
Dimensions: 58.0 * 20 * 13.7mm / 2.2 * 0.78 * 0.54in
Weight: 9g / 0.28oz
Package size: 80 * 45 * 19mm / 3.1 * 1.7 * 0.7in
Package weight: 17g / 0.59oz

Software Installation Detail:

https://www.dropbox.com/s/ojaj4sesacfheq9/S280%2CS282%2C%20S283%E7%9A%84SDK.zip?dl=0

Package List:
1 * Smart USB Card Reader Writer
