Metal Waterproof Access Control ID Card Reader Keypad for Door Security DC7-30V Wiegand 26 Interface 125KHz with 10pcs Key Fob

type:s398

  • s398

Choose your country:

  • United States
  • United Kingdom
  • France
  • Germany
  • Spain
  • Japan
  • Italy
  • Overview
  • FAQ
The product is a metal cased, anti-vandal, 1000 users standalone controller, with built-in proximity card reader module and keypad. It is ideal for high traffic and extremely harsh environments, the unit is fully sealed, epoxy filled and has advanced programming options as well as flexible operation models. The unit accepts up to 1000 users and provides entry via the user of proximity cards and/or PIN codes.

Features:
1000 users capacity.
Door release time adjustable from 1 to 25s.
Open door with 4 models: PIN only, Prox. only and Prox.+PIN, REX exit button.
Enroll/delete card by keypad, or master card.
Delete card by input card number from keypad directly.
Optical Tamp detection and buzzer alarm function.
Blue backlight LED for keypad.

Specifications:
Color: Silver
Material: Metal
Power: DC7-30V at 100mA
Standby Input Current: 30mA (NOT including attached devices)
Interface: Wiegand 26
Read Range: 4-10cm
Frequency: 125KHz
Compatible Card: All EM Cards(HID or for Mifare version)
Operating Temperature: -30 to 65°C / -22 to 149°F
Operating Humidity: 5%-95% Relative Humidity Non-condensing
LED: Blue LED Backlight
Waterproof: IP65
Item Size: 120 * 58 * 20mm / 4.72 * 2.28 * 0.79in (L * W * H)
Item Weight: 373g / 13.18oz
Package Size: 16 * 12 * 6cm / 6.3 * 4.72 * 2.36in (L * W * H)
Package Weight: 517g / 18.25oz

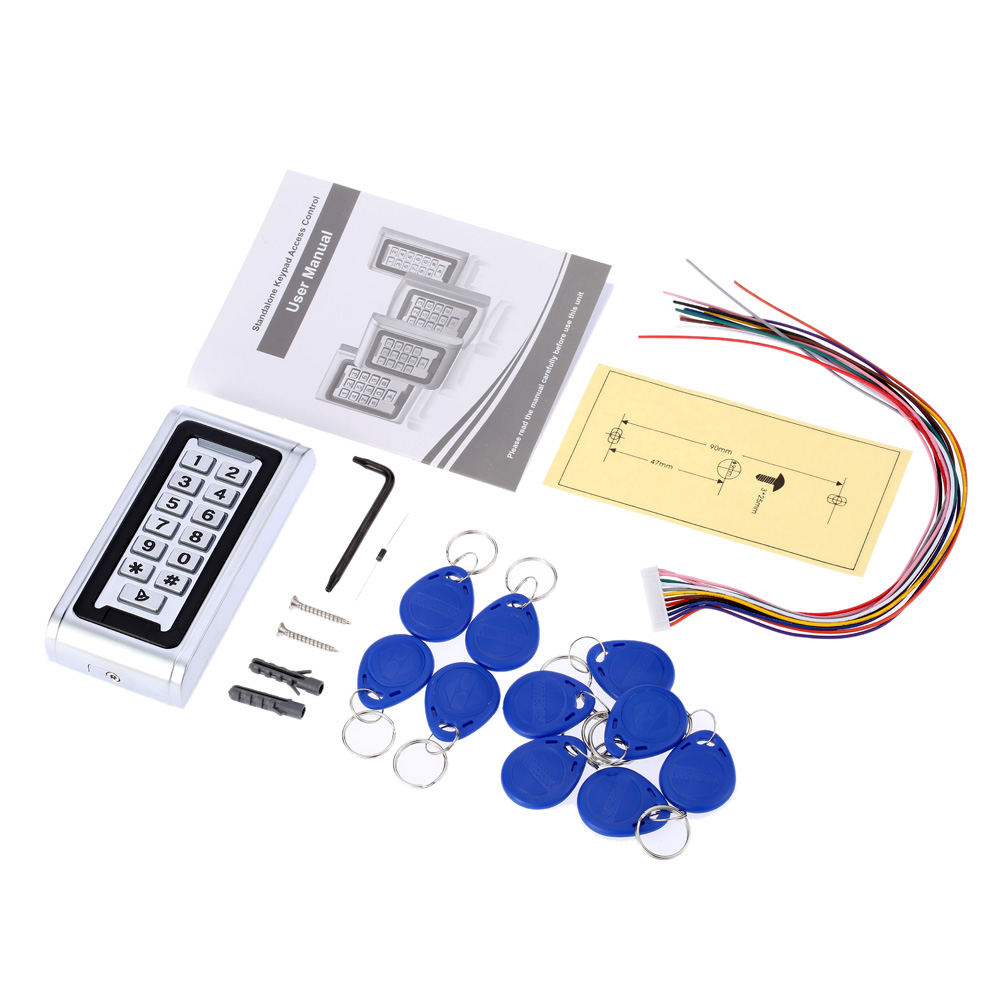

Package List:
1 * Card Reader
1 * Sticker
1 * Bag of Screws
10 * Key Fob
1 * User Manual (English)
