Brand Name:KKmoon
UPC:706551151573
SKU:C1986
Features:
Uses 2.4G RF bi-directional wireless data transmission module.
Automatic frequency hopping, strong anti-interference capability.
Superspeed 280Kbps wireless transmission rate.
The communication distance in the open place is up to 200 meters. (The specific distance depends on the use environment.)
Plug-n-play, USB receiver automatic pairing, no any driver is needed.
Easy to check and can storage 5,000 barcode data.
Automatic sleep mode and low voltage protection of the battery, largely prolongs the standby time of the battery.
Rich decoding types, advanced long-range functionality and long service life of button (up to 60,000,000 times).
Support the keyboard output of more than 20 different languages.
If the transmission distance is beyond the effective distance or data is not uploaded successfully, three short alarms will be given for prompt.
The independent mechanical ID enables each scanner has a unique identification number and guarantees that many sets of products cannot disturb each other when working simultaneously.
Bright and sharp laser beam reads thin barcodes accurately and correctly.
Wireless & handheld, very convenient and portable to use.
Compact anti-shock & drop-resistance design, durable & high quality.
Widely used in all walks of life, such as supermarket, bank, warehouse, logistics & express, etc.
Note: DO NOT point the scanner's laser beam to eyes.
| Frequency | 2.4G |
| Communication distance | 200m |
| Light source | Visible lasing diode; Wave length: 650nm |
| Scanning mode | Bi-directional single line scanning |
| Scanning speed | 280 scans / sec |
| Scanning accuracy | 0.10mm PCS0.9 |
| Scanning width | 30mm @ The scanner window, 220mm @ 200mm |
| Scanning depth of field | 0~350mm (0.43mm, PCS 98%) |
| Tilt & Elevation & Deflection | 30° & 75° & 65° |
| Interfaces supported | USB |
| Print contrast ratio | At least 30% reflectivity difference |
| Error rate | 1/5,000,000 |
| Promoting methods | Buzzer, LED indicator |
| Scanning ways | Trigger manually or continuous scanning |
| Decoding abilities | EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China postal code, etc. |
| Power source | DC5V |
| Battery type | 800mA Lithium ion battery |
| Working current | 130mA (Total power consumption: 650mw) |
| Quiescent current | 70mA |
| Laser safety | National safety standard Class 2 |
| Electromagnetic compatibility | CE, FCC, DocCompliance |
| Operating temperature | 0 ~ 45 degree Celsius |
| Storage temperature | -20 ~ 60 degree Celsius |
| Humidity | Relative humidity 5% ~ 90% (No condensation) |
| Ambient brightness | Max. 5,000 lux (fluorescence) |
| Anti-knock | Can withstand 1.8m free fall |
| Material | ABS + PC + Rubber |
| Cable length | Approx. 80cm / 31.49in |
| Product size | Approx. 8.7 * 7 * 16.8cm / 3.43 * 2.76 * 6.61in |
| Product weight | Approx. 135g / 4.76oz |
| Package size | Approx. 20 * 10.3 * 8cm / 7.87 * 4.06 * 3.15in |
| Package weight | Approx. 283g / 9.98oz |

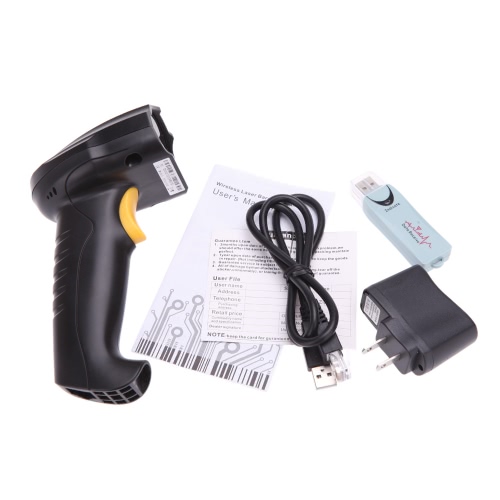

Package List:
1 * Wireless laser barcode scanner
1 * USB charging cable
1 * USB charge adapter
1 * Wireless receiver
1 * User manual (English)
