UPC: 519752281945

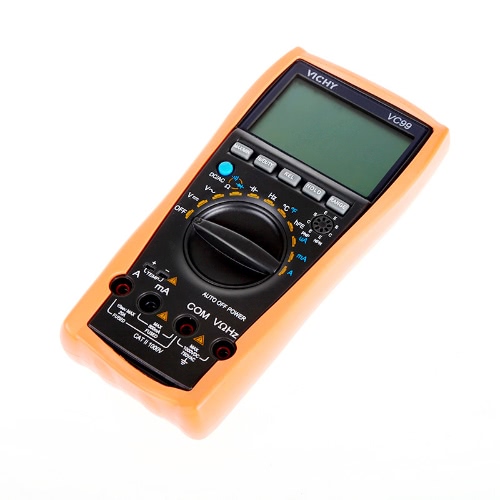

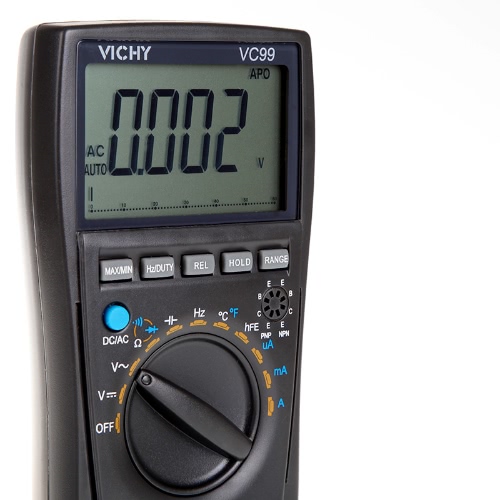

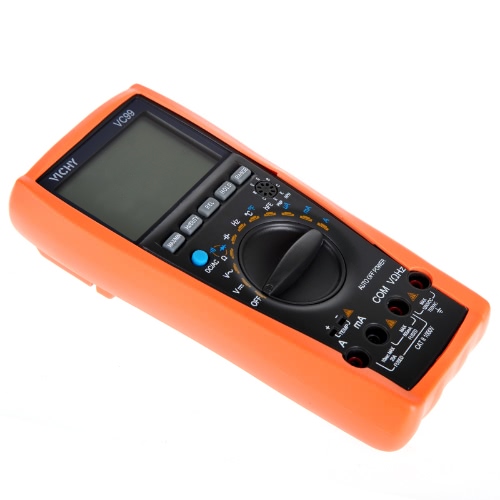

3 6/7 Auto Range Digital Multimeter with Analog Bar
Features:
Large LCD makes the reading clearly.
Strong antimagnetic and anti-jamming performance.
Auto power off, built-in buzzer will be sound 5 times and turn into sleep mode.
Full function protection.
Unit symbol display, very easy to reading.
Relative value, frequency/duty cycle measuring, data hold.

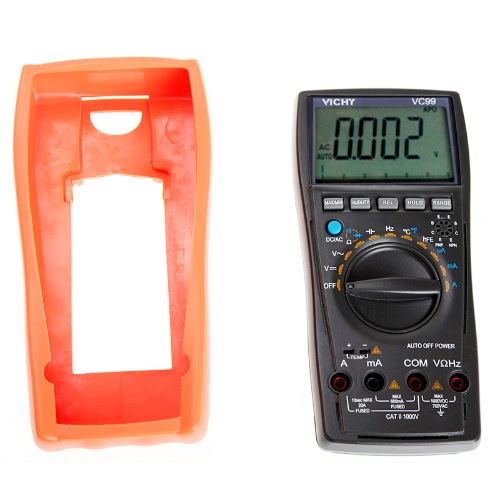

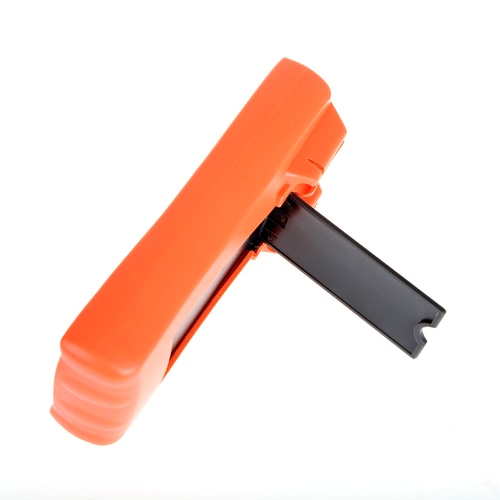

New type holster, streamline design.
Specifications:
DCV: 600mV/6V/60V/600V/1000V, ± (0.5%+4)
ACV: 6V/60/600/1000V, ± (0.8%+6)
DCA: 600uA/6000uA/60mA/600mA/6A/20A, ± (0.8%+3)
ACA: 600uA/6000uA/60mA/600mA/6A/20A, ± (1.5%+10)
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ, ± (0.8%+5)
Capacitance: 40nF/ 400nF/4uF/40uF/400uF/2000uF, ± (3.5%+8)
Frequency: 100Hz/1kHz/10kHz/100kHz/1MHz/60MHz, ± (0.5%+4)
Centigrade temperature: -40℃~1000℃, ± (0.75%+3) ; 0℉~1832℉, ± (1.2%+3)
Special Functions:
Diode test: Yes
HFE test: Yes
Continuity test: Approx. less than 30Ω±10Ω
Low battery indication: Approx. less than 2.4V
Duty cycle measuring: Yes
Data hold: Yes
Auto power off: Approx.15minutes
Analog bar: Yes
Function protect: Yes
Input impendence: 10MΩ
Sampling rate: 3times/s
AC frequency response: 40-400Hz
Operation way: Manual or auto range
Max. display: 6000
LCD size: 65x41mm
Battery: 3V AAA×2
Power dissipation: Quiescent current approx. 2mA
Color: Body-grey; Cover-orange
Item size: 18.5 * 8.5 * 3.5cm
Package size: 20 * 12.5 * 5.5cm
Item weight: 350g
Package weight: 515g
Package Including:
1 * Digital multimeter

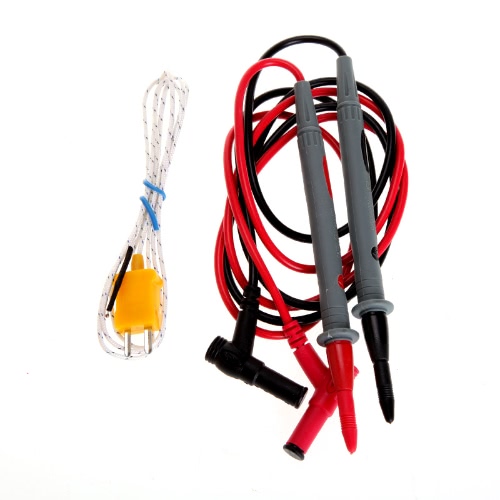

2 * Test leads
1 * Temperature probe
1 * User manual
