KKmoon 720P HD H.264 1MP Camera PnP P2P AP Pan Tilt IR Cut WiFi Wireless Network IP Webcam

plug_type:uk plug

  • uk plug
  • eu plug

sensor_size:1/4"

  • 1/4"

Choose your country:

Buy at Amazon
  • Overview
  • FAQ
  • Reviews
  • video

Operation Video:
1. Camera Operation Video on Phone APP: https://www.youtube.com/watch?v=rROnrVlxqp4&feature=youtu.be
2. Camera Operation Video on PC Client: https://www.youtube.com/watch?v=Z3XNJnnZzdI&feature=youtu.be


This IP Camera can send high-quality live video with sound through the Internet to a web browser anywhere in the world. Both wired and wireless network connections are available. Once you choose it, you will be amazed at its abundant features and richer functionality. From now on, you can record what happened in your life faithfully, vividly and permanently.

Features:
* H.264 1/4" Color CMOS Sensor 1,000k Pixels.
* Support QR Code Scanning.
* Maximum support 32GTF Card.
* High image & video quality, Two-way audio monitoring.
* Both wired and wireless network connections are available.
* P2P(Plug&Play)technology, penetration degree can be 99%.
* Allow remote Pan/Tilt control (Pan : 355°& Tilt : 120°).
* Mechanical IR-Cut device offers outstanding day/night performance, great color.
* (1280*720) Pixels 720P/VGA/QVGA, dual stream.
* Allow remote viewing & record from anywhere anytime.
* Wi-Fi compliant with wireless standards IEEE 802.11b/g/n.
* Support TCP/IP, SMTP, HTTP, FTP, PPPOE and other Internet related protocols.



Specifications:

Features:
System Security Account, password authority management
Free DDNS Free DDNS, supports dynamic IP
View by Phone Support HD pic IOS, Android mobile view (iOS 4.3, Android OS 2.3 above)
Local Storage Support up to 32GB MicroSD card, 24-hour loop recording
Monitor Advantage Support PC computer monitoring, smartphone multi-pic view
PnP Plug & Play, 99% penetration rate, Easy to setup: 1, connect the network cable and power adapter. 2, install APP, scan UID code to add camera.  3, Click online camera to view the camera.
QR Code Scanning UID scan technology applied, easy to operate, and highly confidential.
Upgrade Upgrade by remote via the web
Reset Intelligent self repair function
Super Client 1, 4, 9, 16, 25, 36, 64 channel central management software, no user number limitation, centralized surveillance, remote record and playback, alarm email, ect.
System
OS Embedded Linux OS
Control Protocol ONVIF 2.0 protocol, high interoperability
Video Coding Multi stream: 720P@30fps + VGA@30fps + QVGA@30fps
Bit Rate CBR / VBR, output bit rate range: 128 - 4096kbps
Processor Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor
Video
Compression Format H.264
Frame Rate 30fps/24fps(720p)
Resolution 720P(1280 * 720), VGA(640 * 480), QVGA(320 * 240)
Sensor 1/4 720p Progressive CMOS sensor
Minimum illumination 0.5Lux
SNR ≥54dB
Adjustable Video Parameters Adjustable Saturation, brightness, contrast and sharpness
IR Control IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
Electronic Shutter 1/50s(1/60s)-1/100, 000s
CMOS Support AWB, AGC, BLC
Lens/Viewing Angle 3.6mm@F1.4
Night Vision
Night Vision Dual IR-CUT Filter auto switch, 11pcs 850nmΦ5mm LED, 10m IR distance
Audio
Compression format ADPCM/32kbps
Audio channel Built-in MIC, 1 channel audio output
Input 1 Channel Internal -48dB Microphone
Output 1  Internal speaker ( 8Ω1W )
P/T Network
P/T Pan: 355°, Tilt: 120°
Preset Postion Support up to 16 preset postions
Network Interface 10Base-T/100Base-TX Ethernet interface
Network Protocol TCP/IP, UNP/TP, HTTP, UDP, SMTP, FTP, DHCP, DDNS, UPNP, NTP, PPPOE
Wireless Network Security WPS encryption
Online Visitor Support 4 online visitors simutaneoursly
IP Address Dynamic IP and static IP address
WIFI IEEE 802.11 b/g/n
Alarm
Alarm channel Alarm input 1 road, 1 road alarm output
Motion Detection Support motion detecting
System Requirement
System Configuration Win98 SE/ME/2000/XP, Vista, iOS4.3, The android version 2.3 or higher
Certificate
Certificate

FCC CE RoHS

Other Information
Model TP-C517WT
Housing Material ABS
Application Environment Indoor
Power Supply DC 5V 2A
Temperature -10~55 °C
Power Consumption Rated power: 3.5W (IR opening ) / maximum power: 7W (P/T working )
Color White
Item Weight Approx. 269g / 9.5oz
Item Size Approx. 10.3 * 11 * 13.6cm / 4 * 4.3 * 5.4in (L * W * H)
Package Size Approx. 17.3 * 14.4 * 12cm / 6.8 * 5.7 * 4.7in (L * W * H)
Total Weight Approx. 534g / 18.84oz
Quantity 1pcs
Warranty 1 Year

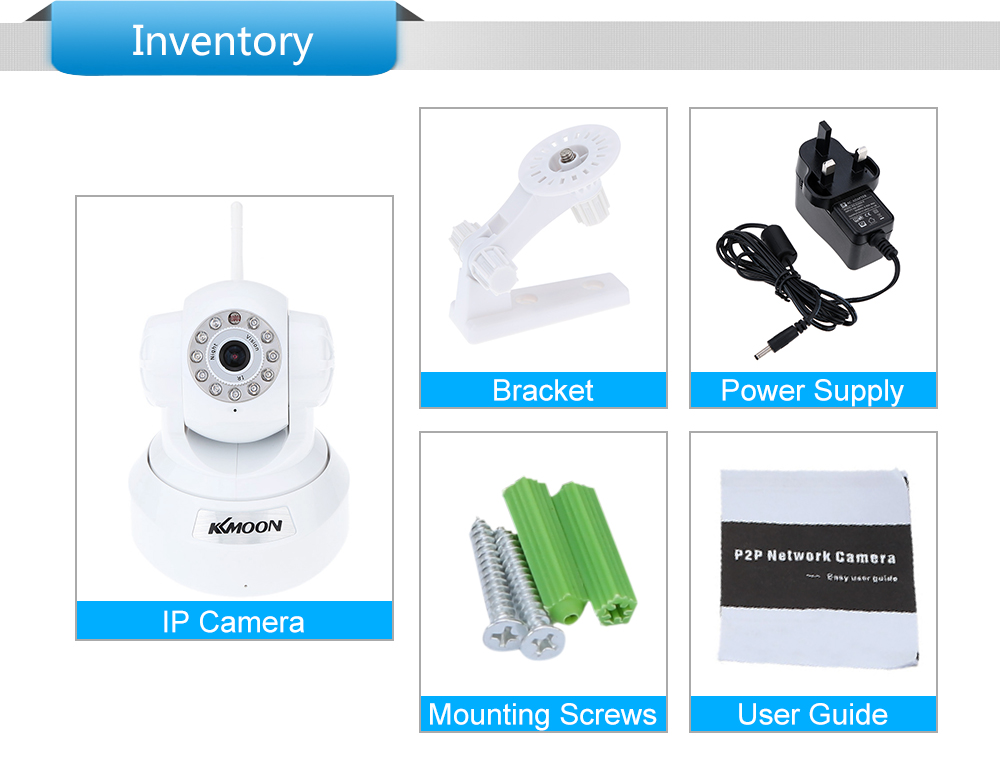

Package list:
1 * IP camera
1 * Power adapter
1 * Mounting bracket
2 * Mounting screws
1 * User manual
1 * CD

1 * Warranty card
