KKmoon 16 Channel 720P CCTV Standalone Analog High Definition H.264 HDMI Remote View Home Security System

video_input:16ch

  • 16ch

compression_format:h.264

  • h.264

plug_standard:uk plug

  • uk plug
  • eu plug

Choose your country:

Buy at Amazon
  • Overview
  • FAQ
  • Reviews

Notice:
This DVR does not include 3.5" HDD.
Overview:
Our home security system DVR have many uses: the security detection of public places, monitoring for unattended stores and warehouses protection, the parks and rides security record and observation, Safety Monitoring for cottages and residential areas, and other surveillance needs for outdoor/indoor.
This AHD DVR combines the function of DVR/HVR/NVR, supports 8-ch playback(ChannelType is 720P/960H) and multi-mode input including HD-720P, analog, HD-720P + analog, which provide a great variety of choices for security monitoring and bring you a safer monitoring system. Meanwhile this AHD DVR provides digital zoom, which allows you to get a closer view of record clips, it maximum supports 3TB 3.5" harddisk(Hard Drive not Included). Finally, you can choose scheduled recording, set motion detection or watch the video on your computer and phone. Easy installation, easy operation.

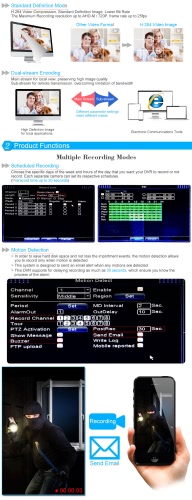

Features:
* H.264 Video Compression format.
* Multi-mode input, digital zoom.
* Combine the function of DVR/HVR/NVR.
* Support pre-alarm recording(before 30 sec).
* Support 1920 * 1080P HDMI and 1024 * 768 VGA output.
* 16-ch video and 2-ch Audio input, 8-ch playback.
* Multi-stream recording resolution and Multiple backup modes.
* Scheduled recording, motion detection.
* With P2P cloud function.

Model TP-AHD116
Main Processor Hisilicon HI3531 Chip
Operating System Embedded Linux System
Menu Display 1/4/8/9/16 Screen
Video Compression H.264
video standards PAL (625 line, 50f/s); NTSC(525 line, 60 f/s); Switch selectable
Video Input 16-ch BNC(1.0vp-p, 75Ω)
Audio Input 2-ch RCA
Video Output

1-ch HDMI + 1-ch VGA

Audio Output 1-ch RCA
Recording resolution

Main-stream: 720P / 960H / CIF / HD1 / D1

Frame Rate 1/25fps-Real time frame rate
Dual Stream Support
Max Playback 8-ch
Code Capacity 8 * 720P/960H input
Analog Mode 16 * 720P(1/25fps), 16 * 720P(1/12fps), 8 * 720P(1/25fps), 16 * 960H(1/25fps), 4 * 720P(1/25fps)
Interface Type SATA Interface
space usage 720P: 20G/day/ch 960H: 12-20G/day/ch Audio: 691.2M/day/ch
Search Mode Time / Date search, fact retrieval, channel retrieval
Capacity Up to 3TB capacity for each HDD
Network Interface 1 RJ-45 10M/100M adaptive Ethernet Interface
USB Interface 2 USB 2.0 Interface
Serial Interface 1 RS485 interface
Backup Mode Network backup, USB mobile hard disk, USB burner
Recording Mode Manual > Alarm > Dynamic Detection > timing
Power Supply 12V 2A
Item Weight Approx.968g / 2.135Lb
Item Size Approx.25.9 * 23.3 * 4.8cm / 10.20 * 9.17 * 1.89in( L * W * H )
Package Size Approx.30.5 * 7.5 * 33cm / 12.0 * 2.95 * 13.0in( L * W * H )
Total Weight Approx.1443g / 3.181Lb
Quantity 1pcs
Warranty 1 Year

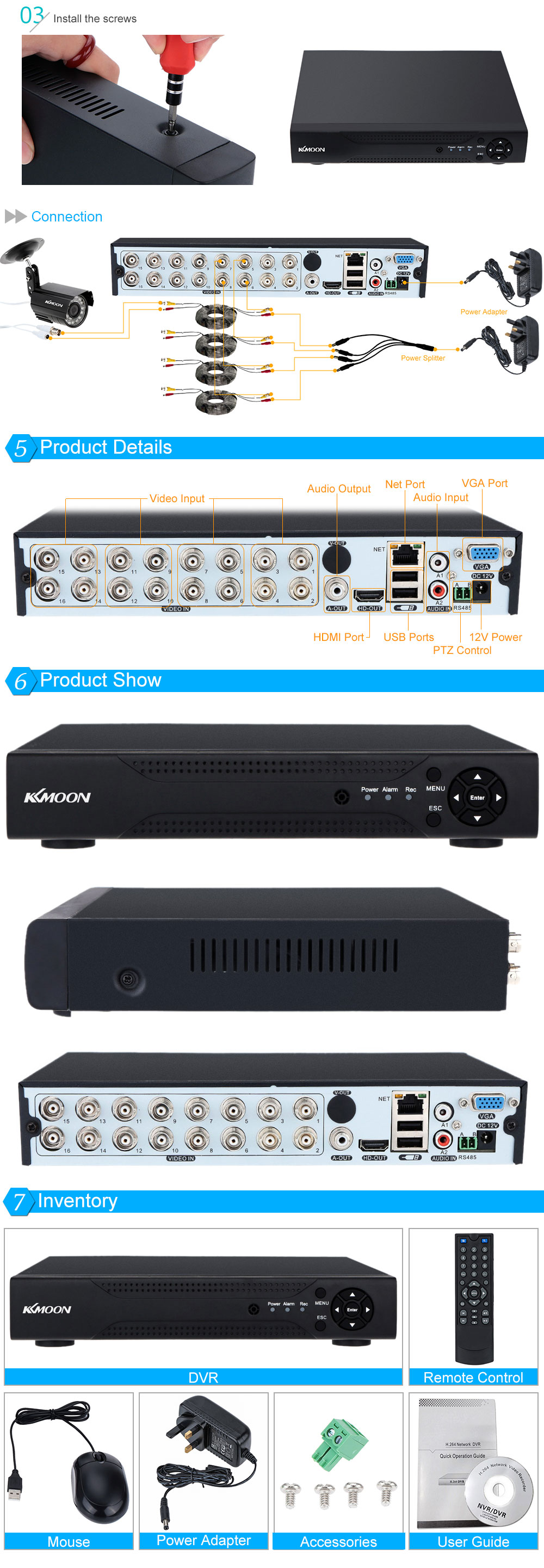

Package list:
1 * 16CH H.264 AHD 720P DVR(Hard Drive not Included)
1 * Power Supply for DVR(UK Plug)
1 * Remote Control for DVR
1 * USB Mouse for DVR
1 * Accessory Bag for DVR
1 * CD Software
1 * User Manual
