OWSOO 16CH Channel Full CIF H.264 HDMI P2P Cloud Network DVR Digital Video Recorder + 1TB Seagate Hard Disk support Audio Record Phone Control Motion Detection Email Alarm PTZ for CCTV Security Camera Surveillance System

Choose your country:

Buy at Amazon
  • Overview
  • FAQ
  • Reviews
OWSOO 16CH Channel Full CIF H.264 HDMI P2P Cloud Network DVR Digital Video Recorder + 1TB Hard Disk support 3G Audio Record Phone Control Motion Detection Email Alarm PTZ for CCTV Security Camera Surveillance System


Features:
*Support 16-ch D1 analog cameras input and 16-ch CIF sync playback.

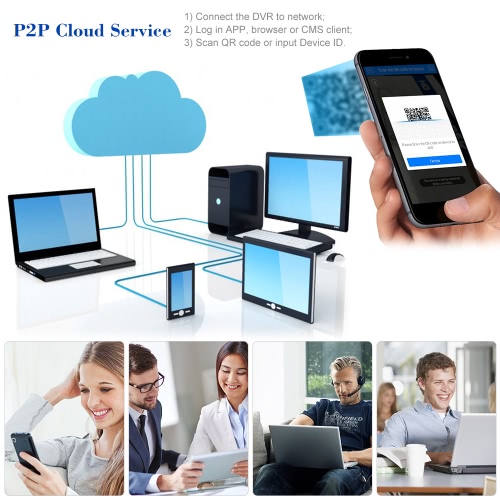

*P2P cloud service for Android/iOS mobile devices remote view anywhere anytime.
*Motion detection record. The DVR will be triggered to record when detect something moving. NO trigger, no record, more intelligent and space-saving.
*Email alert and alarm notification. When motion detection is triggered, the DVR will automatically send out buzzer sound and alarm notifications to your email, including snapshot on the spot.
*Multiple ways to access on the PC, phone and pad, can be viewed by PC client, Phone APP and IE browser.
*This DVR default VGA resolution is 1024*768, so we suggest you to use the monitor with 1024*768 or higher resolution for normal use.
*Dual-stream encoding. Main stream (CIF) for local view, presenting high quality image; Sub stream (CIF/QCIF) for online remote view, over limitation of bandwidth.
*Widely used at home, shopmarket, office and other surveillance needed places.


Specifications:
Operating System: Embedded Linux System
Processor: Hi3521A + 2G DDR3
Menu Display: 1/4/8/9/16 Screen
Video Compression: H.264
Record Resolution: Full CIF
Signal System: PAL/NTSC
Frame Rate: 1-30fps (NTSC), 1-25fps (PAL)
Analog Input: 16D1 (backwards compatible)
Max Synchronous Playback: 16-ch CIF
HDD Capacity: 1TB (included)
Record Mode: Manual/Scheduled/Motion Detection/Alarm
Privacy Block: Support; Digital zoom: Support
Network Protocol: TCP/IP, HTTP, DHCP, PPPOE, DDNS, SMTP, 3G
Alarm Linkage: Record, snapshot, buzzer, send email and message push
OSD Language: English, French, German, Spanish, Italian, Japanese, etc
VGA Resolution: 1280*1024, 1024*768 (default)
Item Size: Approx.25.6*23.2*4.4cm / 10.08*9.13*1.73in
Item Weight: Approx. 1353g / 2.98lb (with HDD)


Package Information:
Package Size: Approx. 34.9*28.6*7.7cm / 13.74*11.26*3.03in
Package Weight: Approx. 1836g / 4.05lb


Package list:
1 * 16CH Full CIF DVR Video Recorder(1TB HDD)
1 * EU Plug Power Adapter
1 * USB Mouse
1 * Remote Controller (2*AAA battery not included)
1 * Bag of Screws for HDD Installation
1 * User Manual
1 * CD software
