This IP Camera with 1/2.5" Color CMOS Sensor and 2,000k Pixels can send high-quality live video with sound through the Internet to a web browser anywhere in the world. Once you choose it, you will be amazed at its abundant features and richer functionality. Meanwhile it maximum supports 64GB TF card, you can record what happened in your life faithfully, vividly and permanently.
Features:
* H.264 1/2.5" Color CMOS Sensor 2,000k Pixels.
* Support QR Code Scanning.
* Maximum support 64GB TF Card.
* High image & video quality, Two-way audio monitoring.
* P2P(Plug&Play)technology, penetration degree can be 99%.
* Allow remote Pan/Tilt control (Pan : 355°& Tilt : 120°).
* Mechanical IR-Cut device offers outstanding day/night performance, great color.
* 1080P(1920 * 1080), 720P(1280 * 720), 640 * 360 , three stream.
* Allow remote viewing & record from anywhere anytime.
* Wi-Fi compliant with wireless standards IEEE 802.11b/g/n.
* Support TCP/IP, SMTP, HTTP, FTP, DHCP, DDNS, UPNP, PPPOE and other Internet related protocols.
Specifications:
| Features: | |
| System Security | Account, password authority management |
| Free DDNS | Free DDNS, supports dynamic IP |
| View by Phone | Support HD pic IOS, Android mobile view (iOS 4.3, Android OS 2.3 above) |
| Local Storage | Support up to 64GB MicroSD card, 24-hour loop recording |
| Monitor Advantage | Support PC computer monitoring, smartphone multi-pic view |
| PnP | Plug & Play, 99% penetration rate, Easy to setup: 1, connect the network cable and power adapter, 2.install APP, scan UID code to add camera. 3, Click online camera to view the camera |
| QR Code Scanning | UID scan technology applied, easy to operate, and highly confidential |
| Upgrade | Upgrading by remote via the web |
| Reset | Intelligent self repair function |
| Super Client | 1, 4, 9, 16, 25, 36, 64 channel central management software, no user number limitation, centralized surveillance, remote record and playback, alarm email ect |
| System | |
| OS | Embedded Linux OS |
| Control Protocol | ONVIF 2.0 protocol, high interoperability |
| Video Coding | Multi stream : 1080P(1920 * 1080), 720P(1280 * 720), 640 * 360 |
| Processor | Hi processor, Hi3516C |
| Video | |
| Compression Format | H.264 |
| Sensor | 1/2.5" 1080p Progressive CMOS sensor |
| Video Code Stream | 64Kbps-8Mbps |
| Frame Rate | 0-30fbs |
| Resolution | 1080P(1920*1080), 720P(1280 * 720), 640 * 360 |
| Image rotation | Mirror |
| Minimum Illumination | 0.5Lux |
| Adjustable Video Parameters | adjustable Saturation, brightness, contrast and sharpness |
| IR Control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode |
| Lens/Viewing Angle | 4mm |
| Night Vision | |

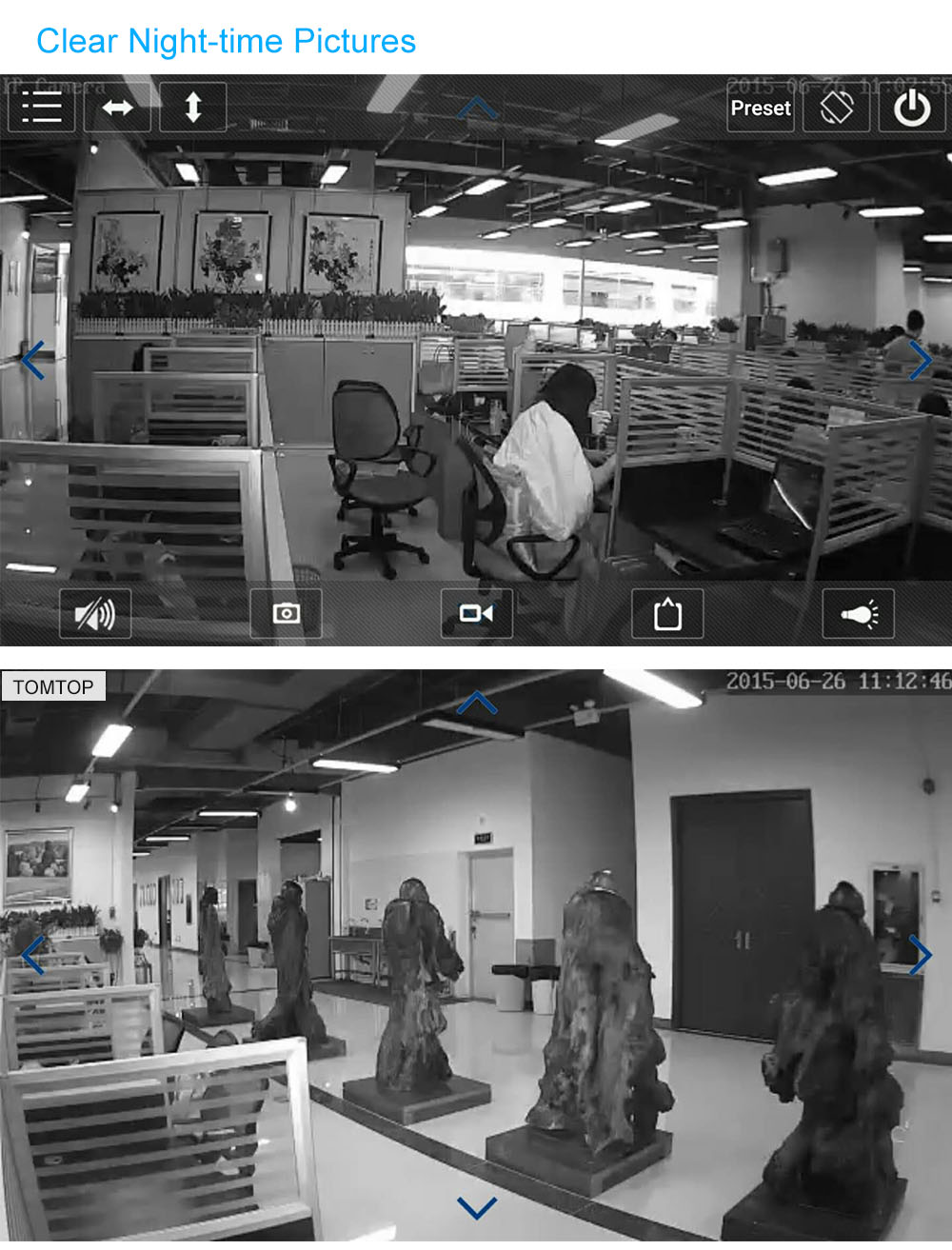

| Night Vision | Dual IR-CUT Filter auto switch, 10pcs Φ 5mm LED, 10m IR distance |
| Audio | |
| Compression format | G.711 G.726 |
| Audio channel | Built-in MIC, 1 channel audio output |
| Input | 1 Channel Internal -48dB Microphone |
| Output | 1 Internal speaker ( 8 Ω 1 W) |
| P/T Network | |
| P/T | Pan: 355°, Tilt: 120° |
| Preset Postion | Support up to 16 preset postions |
| Network Interface | 10Base-T/100Base-TX Ethernet interface |
| Network Protocol | TCP/IP, UNP/TP, HTTP, UDP, SMTP, FTP, DHCP, DDNS, UPNP, NTP, PPPOE |
| Wireless Network Security | WPS encryption |
| Online Visitor | Support 4 online visitors simutaneoursly |
| IP Address | Dynamic IP and static IP address |
| WIFI | IEEE 802.11 b/g/n |
| Alarm | |
| Alarm channel | Alarm input 1 road, 1 road alarm output |
| Motion Detection | Support motion detecting |
| System Requirement | |
| System Configuration | Win98 SE/ME/2000/XP, Vista, iOS4.3, The android version 2.3 or higher |
| Other Information | |
| Model | TP-C549T |
| Housing Material | ABS |
| Application environment | Indoor |
| Power Supply | DC 5V 2A |
| Temperature | -10~55 °C |
| Power Consumption | <5W |
| Color | White and Black |
| Item Weight | Approx. 321g / 11.3oz |

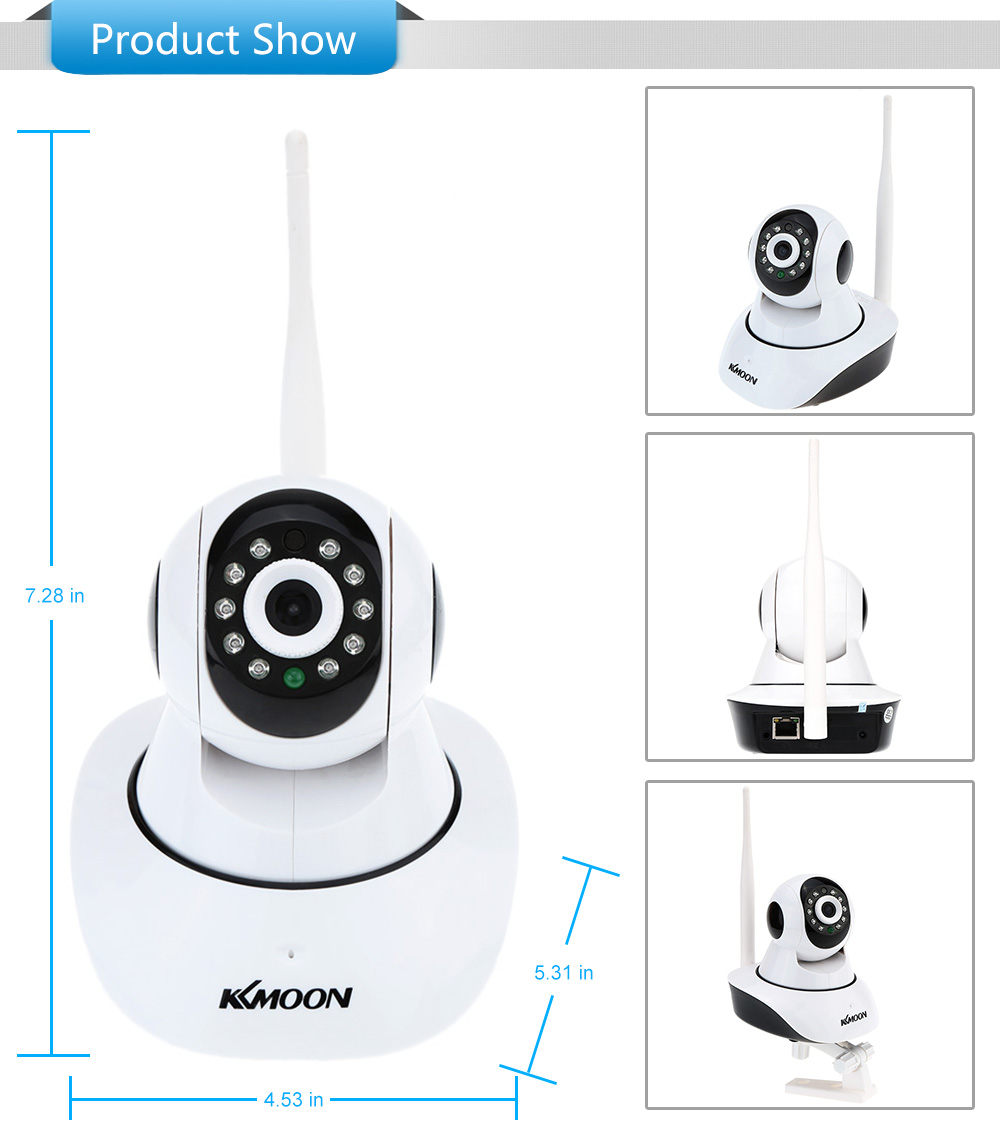

| Item Size | Approx. 13.5 * 11.5 * 18.5cm / 5.31 *4.53* 7.28in (L * W * H) |
| Package Size | Approx. 20 * 17.5 * 12.8cm / 7.87 * 6.89 * 5.04in (L * W * H) |
| Total Weight | Approx. 663g / 1.46Lb |
| Quantity | 1pcs |
| Warranty | 1 Year |
Package list:
1 * IP camera
1 * Power adapter
1 * Network cable
1 * Mounting bracket
2 * Mounting screws
1 * User manual
1 * CD
1 * Warranty card
